Mechanical Seal for SE SV Submersible Pumps

Quantité de commande min : 1 pièce Prix : USD50-1000
Détails d'emballage : boîte comme exigence Délai de livraison : 20-30 jours
Conditions de paiement : T/T, Western Union, LC Capacité d'approvisionnement : 100000PC/mois
Lieu d'origine: Fabriqué en Chine Nom de marque: JR
Certification: iso9001 Numéro de modèle: AES SOS

Détail Infomation

Matériel: SIC SIC FKM Fonction: pour pompe à huile, pompe à eau
Code SH: 848420090 Certificat: ISO9001
Taper: Pour la pompe AES SOS Standard: Standard
Taille: Taille personnalisée Application: joint d'arbre
Spécification: Pour garniture mécanique de pompe AES Style: Sélecteur mécanique AES

Description de produit

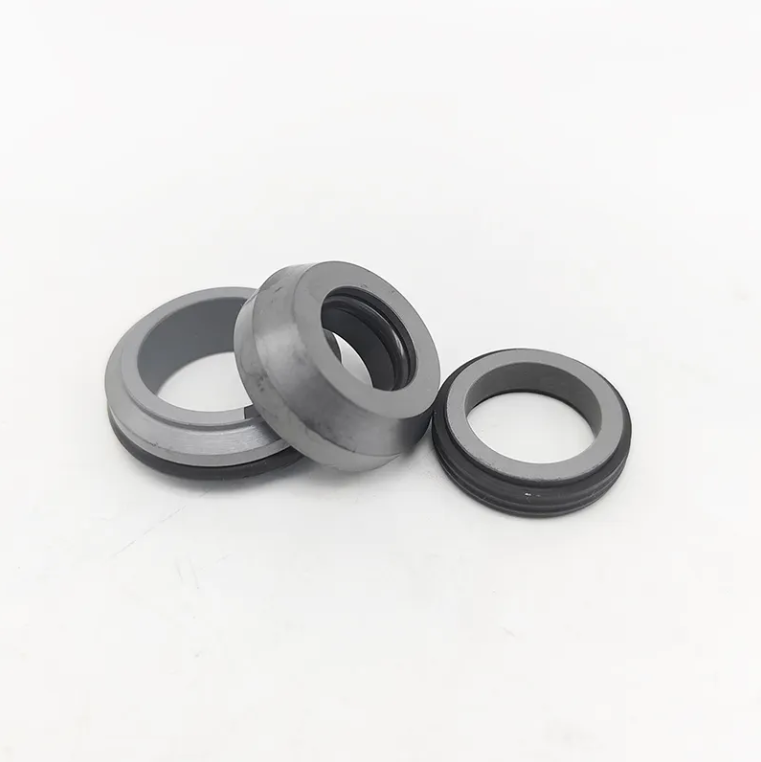

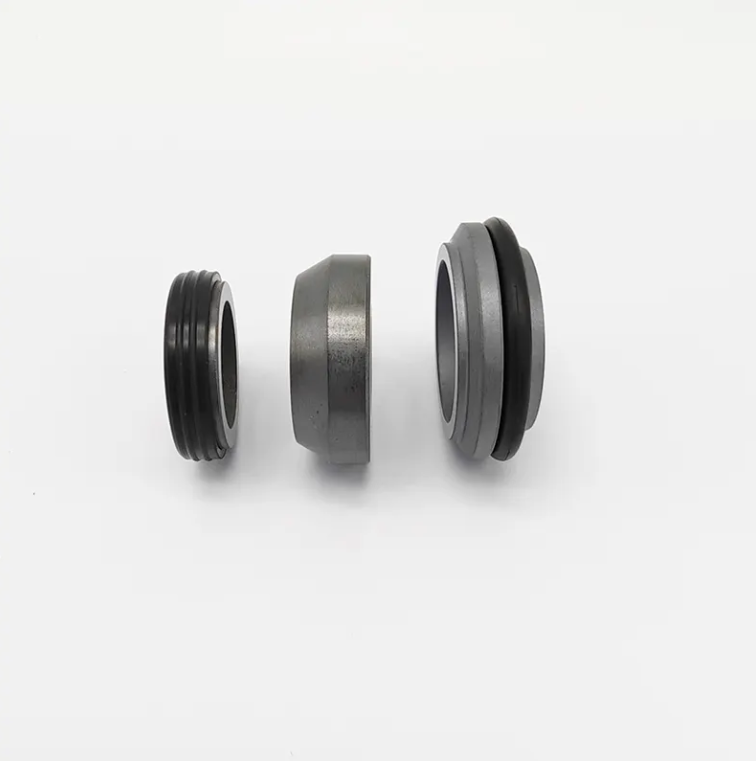

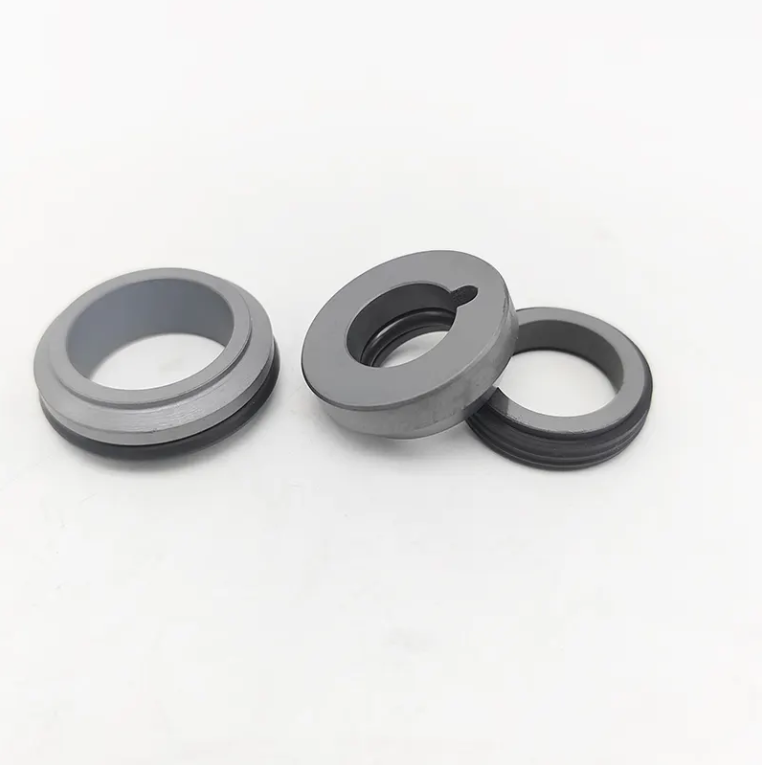

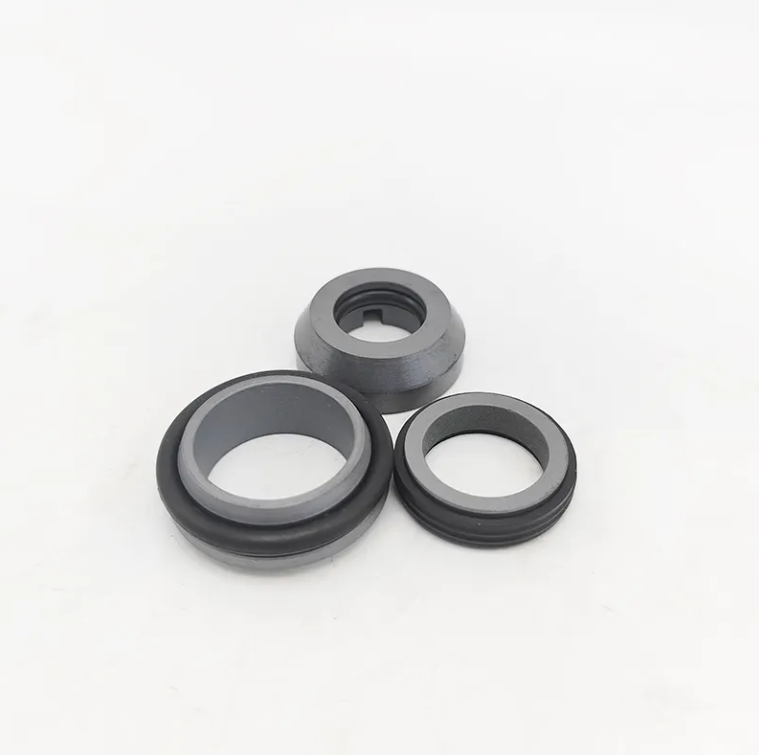

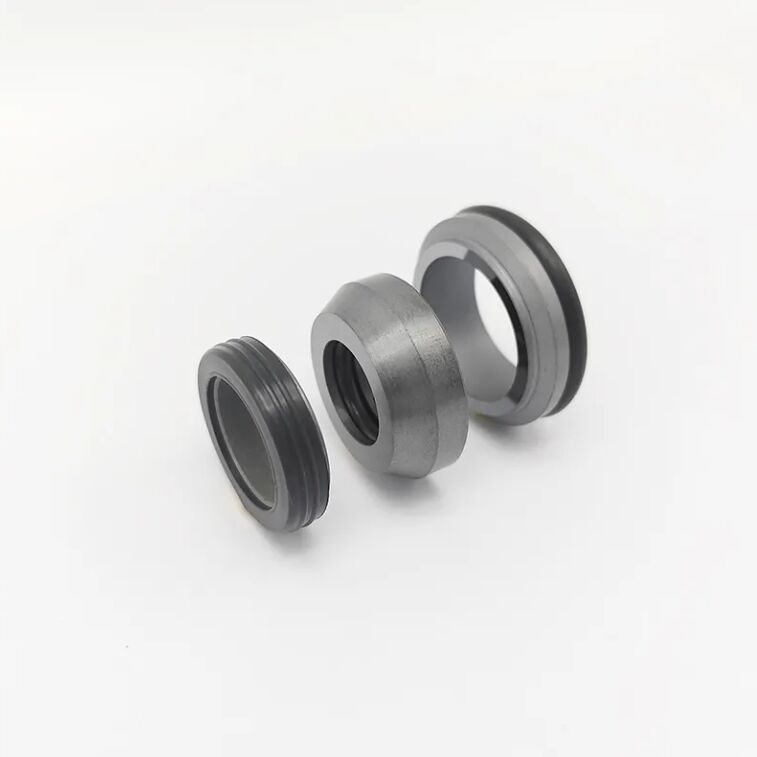

Shaft Seals AES SOS Mechanical Seal for SE SV Submersible Pumps



Operational Conditions:

  1. Suit for Grund SE- and SV series submersible pumps
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids



Performance Capabilities



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 8 bar
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
16mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Carbon, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.


Mechanical Seal for SE SV Submersible Pumps 0Mechanical Seal for SE SV Submersible Pumps 1Mechanical Seal for SE SV Submersible Pumps 2Mechanical Seal for SE SV Submersible Pumps 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
